20 - 120m Depth Hydraulic Solar Pile Driver 56KW Power 2000mm Once Promotion

Brand Name : RanCheng

Model Number : RC130Y Hydraulic Solar Pile Driver

Certification : CE, ISO 9001:2000

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 100sets per Month

Delivery Time : 10-15 working days

Packaging Details : It can be shipped by one 20" container

Name : Solar Pile Drive

Model : RC130Y Hydraulic Solar Pile Driver

Power : 56KW diesel engine

drilling way : Auger pile drilling ,screw piling ,DTH hammer drilling

Contact Now

20 - 120m Depth 2000mm Once Promotion Hydraulic Solar Pile Driver 56KW Power

Product Description

RC130Y is a top - drive multi - functional drilling rig that is suitable for a variety of drilling methods, such as mud pump rotary drilling, air DTH drilling, etc., and is widely used in various projects. The drilling rig adopts new hydraulic technology, which has low energy consumption, high rotation torque and convenient hole position adjustment functions. The RC130Y hydraulic drilling rig is cost - effective and equipped with a powerful hydraulic system and advanced drilling technology. It is one of the most reliable and efficient drilling rigs on the market. Its advantages include powerful drilling power, high drilling efficiency, flexible operation, easy maintenance and solid structure. It pays attention to safety and environmental protection and is suitable for various occasions.

Product Specifications

Bore diameter(Hammer) 90-310mm
Bore depth 20-120m
Air consumption 10-26m3/min
Air pressure 0.7-1.6Mpa(medium) 1.6-2.46Mpa(high)
Pipe diameter 76mm/89mm
For rock F=6-20
Bore diameter(screw) Max 400mm
Bore depth 0-30m
Screw pipe diameter 130-410mm
Once promotion 2000mm
Skid pitch 100degree
The swinging angle of the skid Left and right total 40°
Rotation speed 0-70r/min
Host power 56Kw
Climb ability 35°
Dimension(L*W*H) 4460*1950*2460mm
Weight 4360Kg
Walk speed 0-2.5km/h

Product Features

The RC130Y hydraulic crawler drilling rig features advanced hydraulic technology, providing high energy efficiency, powerful rotational force and convenient hole position adjustment. Its structure is compact and lightweight, and the mast is equipped with an adjustment and compensation system to ensure accurate and stable hole position during drilling. The drilling rig can adapt to different operating environments, and its stability and high efficiency help reduce operating costs and improve construction efficiency. It is not only suitable for conventional anchor pile and well drilling work, but can also efficiently complete special projects such as photovoltaic solar spiral pile installation and DTH blasting, fully demonstrating its multi - purpose and adaptable advantages.

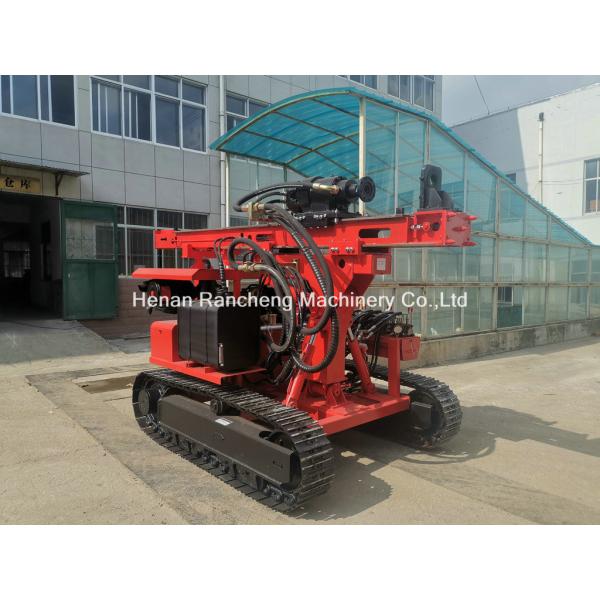

Product Image

20 - 120m Depth Hydraulic Solar Pile Driver 56KW Power 2000mm Once Promotion20 - 120m Depth Hydraulic Solar Pile Driver 56KW Power 2000mm Once Promotion20 - 120m Depth Hydraulic Solar Pile Driver 56KW Power 2000mm Once Promotion20 - 120m Depth Hydraulic Solar Pile Driver 56KW Power 2000mm Once Promotion
