RC130Y Hydraulic Crawler Pile Drilling Machine 30m Screw Solar Pile Driver Pile Drilling Rig
Generally introduction:
RC130Y is one multi-functional drilling rig ,top head driving ,has different drilling way ,such as mud pump rotary drilling ,air DTH drilling ,auger pile drilling ,solar pile installation ,PV solar pile ground screwing etc ,widely used in many different projects
This drilling rig use new type of hydraulic technology, low consumption, large rotary torque, convenient hole deflection.
Product Specifications
| Bore diameter(Hammer) | 90-310mm |
| Bore depth | 20-120m |
| Air consumption | 10-26m3/min |
| Air pressure | 0.7-1.6Mpa(medium) 1.6-2.46Mpa(high) |
| Pipe diameter | 76mm/89mm |
| For rock | F=6-20 |
| Bore diameter(screw) | Max 400mm |
| Bore depth | 0-30m |
| Screw pipe diameter | 130-410mm |
| Once promotion | 2000mm |
| Skid pitch | 100degree |
| The swinging angle of the skid | Left and right total 40° |
| Rotation speed | 0-70r/min |
| Host power | 56Kw |
| Climb ability | 35° |
| Dimension(L*W*H) | 4460*1950*2460mm |
| Weight | 4360Kg |
| Walk speed | 0-2.5km/h |
Application:
This hydraulic borehole drilling rig is widely used in water well drilling ,solar pile installation ,auger piling foundation,geotechnical engineering foundation ,blasthole drilling construction etc.
Advantages:
1.RC130Y hydraulic crawler drill rig, using new type of hydraulic technology, low consumption, large rotary torque, convenient hole deflection .
2.The drilling machine structure is compact,.while the mast has adjustable compensation function.when drilling, the mast supported on the ground, borehole stability is good.
3.RC130Y hydraulic earth ground screw pile rig has reliable performance, high efficiency, suitable for operating conditions.It also reduce costs and improve the efficiency
4.multi functional ,the drilling rig is mainly used for piling anchor, water Wells,Photovoltaic solar spiral pile, DTH blasting construction, etc.

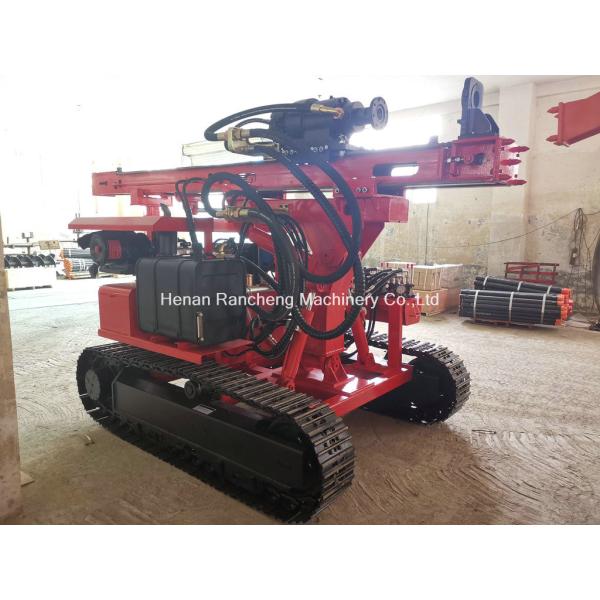

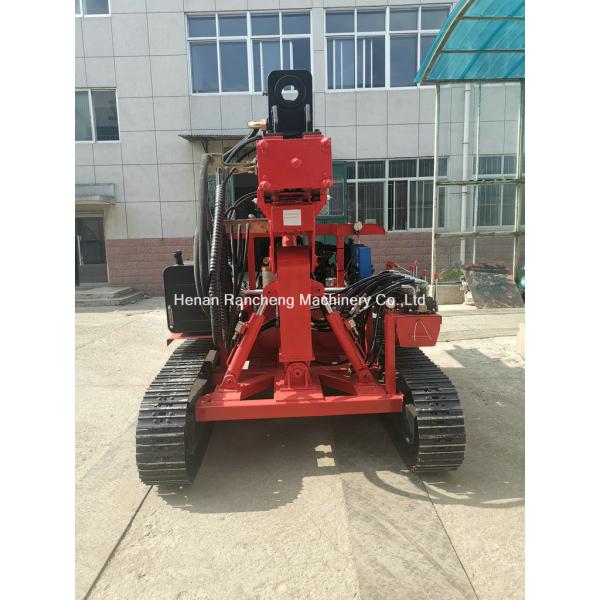

Product Image
