Suitable For Various Borehole Diameters Solar Pile Driver Drilling Rig
Product Description
Crawler-mounted pile drivers are commonly used for the installation of highway guardrail posts, garden fences, and small foundations. This machine primarily performs three functions: ramming, DTH (down-the-hole) impact drilling, and pulling out posts. With these capabilities, it can effectively meet the demands of most projects.
1. Construction work sites with varying soil hardness can be managed using a hammer. This includes materials such as clay, soft soil, and medium-hardness soft rock and gravel.
2. The maximum post height can reach up to 4.0 meters.
3. The drive head can be customized to accommodate different post sizes and shapes, including C, H, I, and Z shapes.
4. If the construction site is particularly hard—such as containing large marbles, hard rock, or compacted gravel—we recommend using a set of drilling attachments to create holes before driving the piles. The hammer and drilling unit can share a single chassis.
Product Specifications
| Model | RCH530D |
| Transportation size (L*W*H) | 6500mm*2200mm*2700mm |
| Working Size (L*W*H) | 3500mm*2200mm*7500mm |
| Crawler Size | 2550mm*1700mm*530mm |
| Vehicle Weight | 4500-5200KG |
| Diesel Engine Rated Power | 70KW |
| Flow Rate of Hydraulic System | 113.4L/Min |
| Hydraulic Pressure(Max) | 20Mpa |
| Mast Stroke | 200-5500 |
| Hydraulic Hammer | YC360 (85MM borehole rod) |
| Impact | 1300J |
| Piling efficiency | 3200mm/Min |
| Drilling Depth(Max) | 3500mm |
| Borehole Diameter | 50-300mm |
| Climbing Ability(Max) | 30° |
| Speed | 3.8KM/H |
| Left/Right Sliding Stroke(Max) | 500mm |
| Max Inclination Angle of Sliding Guide Frame | Left 30°/Right 8° |
| Front / Rear Adjusting angle of frame | Front 75°/ Rear 15° |
| Min Ground Clearance | 230mm |
| Capacity of Hydraulic Oil Tank | 80L |
| Capacity of Diesel Tank | 80L |
Company Information
Henan Rancheng Machinery Co., Ltd. is a professional supplier of drilling rigs based in China. We specialize in designing and manufacturing various types of drilling equipment, including water well drilling rigs, rotary drilling rigs, anchor drilling rigs, core drilling rigs, DTH drilling rigs, solar pile drivers, mud pumps, air compressors, and drilling tools. Our company is equipped with advanced technology, modern equipment, a first-class team, and extensive experience in the industry. Our products have passed certifications such as ISO9001 and CE. We export our equipment to around 200 countries and regions worldwide and receive excellent feedback from our clients.
We adhere to the principle of "Customer First, Integrity First" and sincerely look forward to the opportunity to cooperate with you!
>>Corporate culture
Concept: based on geological drilling to help China's develop-ment.
Vision:to be a leader in geological prospecting machinery.
Make outstanding contributions to the cause of geological explo-rationin China.
Corevalue:Patriotism Integrity Dedicated
Enterpriseprinciple:Contributing to the society Peopleoriented Constantlystrive for perfection Win-wincooperation.

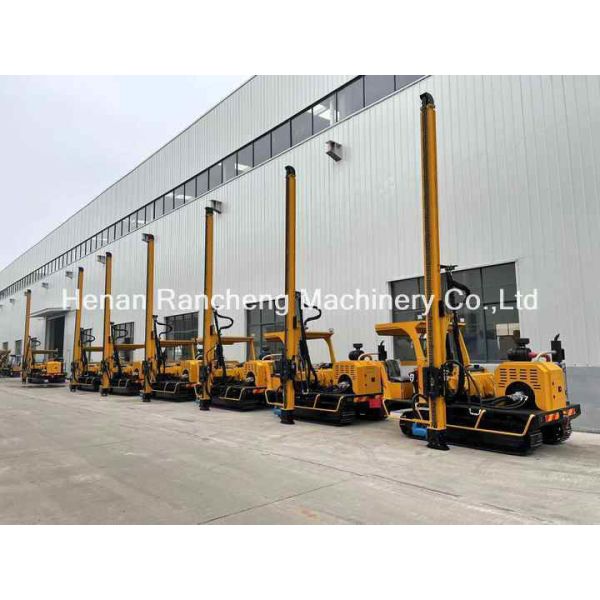

Product Image
